Rail Nylon Insulator

Rail nylon insulator is installed between rail and tie plate, for adjusting rail gauge and electrically insulating railroad rails, clips and bolts from the interior of a concrete tie or sleeper. Its function is the same as a rail pad, but it is thicker than rail pad. For the high speed or high load train, it is a necessary fastener part .


rail nylon insulator
As a leading rail fastener manufacturer based in China,we are adhering to "quality first "policy .AGICO pay grate attention to quality control management.We have been granted ISO9001-2008 certificates and have received the porduction license of China's Railway Ministry on railway product. We have a full set of inspection instruments to ensure all our rail nylon insulator porducts are high quality and up to customers' requirements. In addition, we also produce many other railway fasteners,such as rail clip、tie plate 、spike、rail bolt railway fishplates, railway fastening system and so on.

Properties of Rail Insulators

The insulators apply to rails such as 60kg (UIC) rail, 52kg rail, 136RE Rail, 90R, 75R, 50R, 60R etc. It’s material:Nylon-6 or Nylon-66 with glass filler content 20% to 35% depending on specification. These material are UV stabilized and available in natural color or as per requirements.AGICO can supply different kinds of rail insulators which suit E clips ,SKL and Nabla fastening systems ,others depend on the specific requirementsfrom the clients .

The Properties of Our Rail Nylon Insulators are as Follows:

Technical Parameter Unit Technical Requirement Value
Density g/cm 1.3-1.45 1.45
Tensile Strength Mpa ≥170 178
Elongation % ≤4.4 4.0
Bending Strength Mpa ≥250 290
Impact Strength (No gap) KJ/m2 ≥80 85
Melting Point 250 - 270 270
Insulation Resistance Ω ≥1×108 5×108
Glass Fiber Content Ω 30-35 35
Hardness HRR ≥110 118

Types of Rail Insulators

We supply E-type rail insulators and guide plates for SKL rail fastening systems and Nabla fastening systems. The material of rail insulator is usually Reinforced Nylon 66 (PA66), with the color white, dark brown or black. Materials and colors can also be customized according to the customers’ requirements.

E-type Rail Insulators

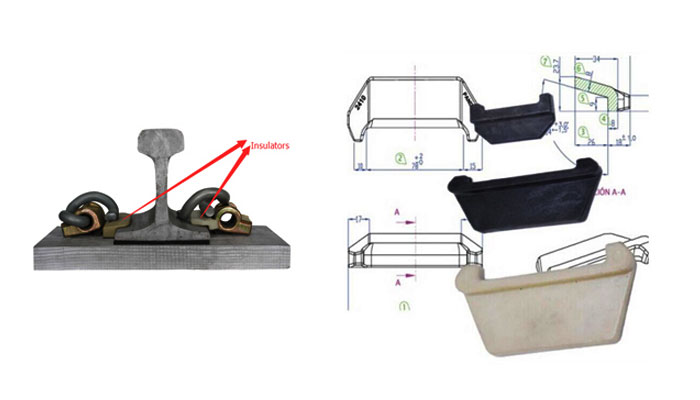

E-type rail insulators are used in E-clip fastening systems, together with E-clips, rail shoulders and rail pads, whose function is to cushion the passing train’s stress onto the rail and make the rail back to position afterwards, similarly used as a rail pad under the rail track.
e type rail insulators

SKL Rail Insulators

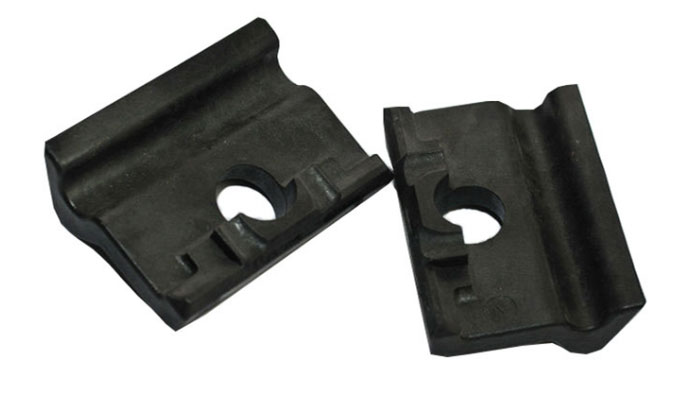

SKL rail insulators are also called guide plates, used in SKL fastening systems, combined with SKL tension clips, screw spikes, plastic dowels, flat washers and rail pads.
skl rail insulators

 Nabla Rail Insulators

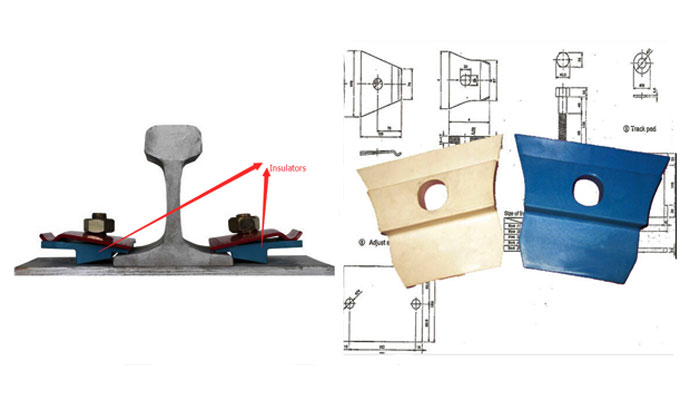

Nabla rail insulators are used in Nabla clip rail fastening systems, working together with other fastener parts including Nabla clips, screw spikes and spring washers.
nabla rail insulators

Packaging Detail: Double-layer woven bag + Free fumigation wooden pallet or according to clients' requirement.

Delivery Detail: Shipment within 35 days upon the receipt of order.

If you're interested in our products or have any questions, please don't hesitate to contact us! We are always at your service!
