Various of Fish Bolt to Fasten Your Rails and Fish Plate

Rail Bolt

Rail bolt, also called track bolt, used to fasten rail joints to the rails, or fix the sleepers and rails together. The size of rail bolts change with the requirements of the section of rail. The proper diameter and length of the track bolt can be determined by checking the applicable railway standard.

AGICO is a track bolts manufacturer, and pays high attention to quality control management. We have a full set of inspection instruments to ensure all our steel rail bolts products are of high quality and up to customers' requirements.

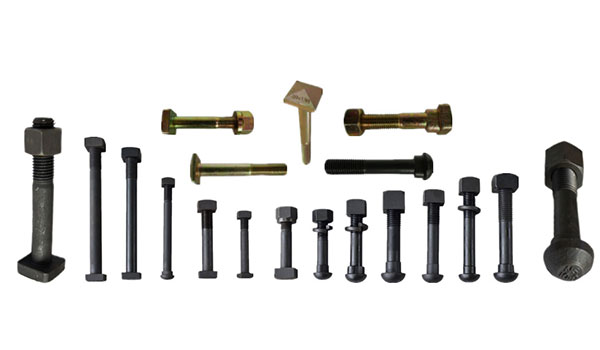

AGICO rail bolts fall into these following types:

AGICO Rail Bolts fall into these following types:
Button head oval neck track bolt,
Diamond neck track bolt,
Rail bolt NF F50-008, Fish bolt,
Track bolt of Russian standard,
Clip bolt,
Clamp bolt and inserted bolt for Russia,
anchor bolt,
T-bolt clamp and other special bolts, etc.

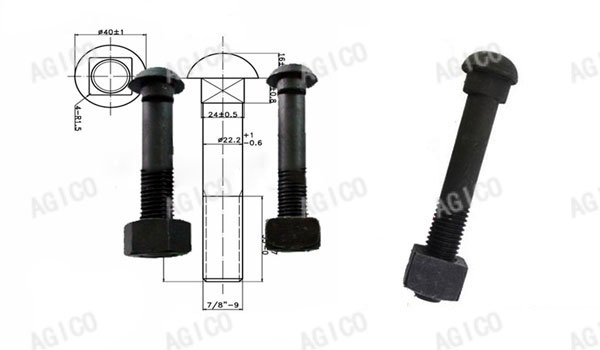

Button Head Oval Neck Track Tolt

Material	Grade	Size	Surface
Carbon steel	8.8 10.9	Dia. M5-M42	zinc plated

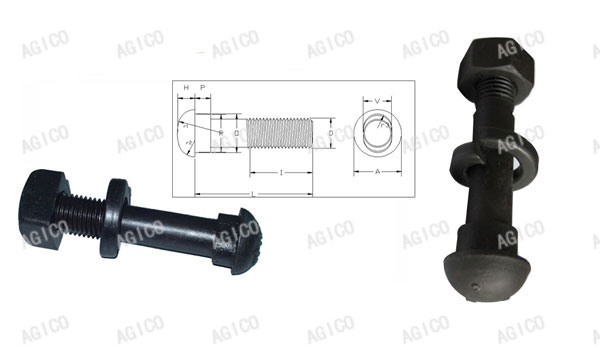

Diamond Neck Track Bolt

Material	Grade	Standard	Surface
Q235, 35#, 45#	4.6, 5.6, 8.8 10.9	UIS864-2	plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing

Rail Bolt NF F50-008

Material	Grade	Certificate	Surface
Q235, 35#, 45#,, 40Cr	4.6, 5.6, 8.8 10.9	ISO9001:2008	plain (oiled), Oxide black, Zinc, HDG

Fish Bolt Used for Rail Joints

Material	Grade	Types	Surface
Q235, 35#, 45#,, 40Cr , C45	4.8, 8.8, 10.9 Size: 22×135, 24×135, 24×145	BS standard, R54 rail in Indonesia, AS1085.4-1999, Russian standard, AREMA standard, etc	plain (oiled), Oxide black, Zinc, HDG

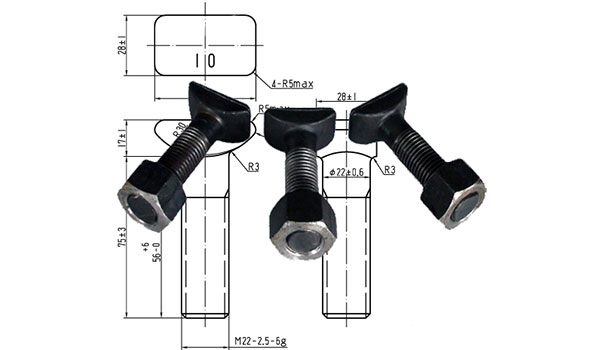

Clamp Bolt and Inserted Bolt for Russia

clamp bolt and inserted bolt for russia.

Material	Grade	Size	Surface
Q235, 35#, 45#	4.6, 5.6, 8.8	M22 ×75, M22 ×175	Plain, black painting or upon customer requirement

We have many types of track bolts，If you need our products, please contact us.
